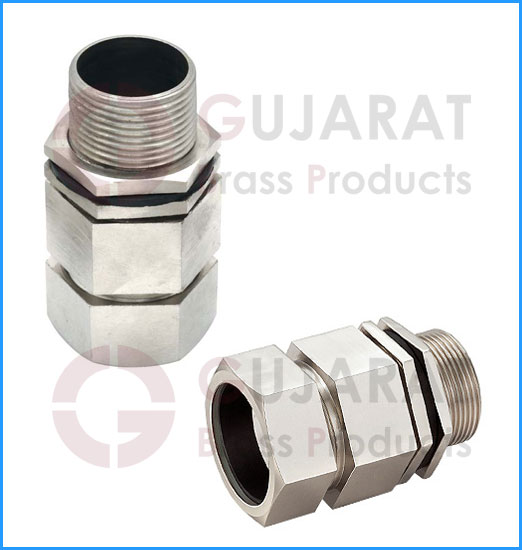

Double Compression Cable Gland
| Suitable Cable Overall Dia
| Sizes
| A Nipple Entry
| B Length
| C (A/F)
| D (A/F)
| E Dia.
| F Dia.
|
| From |
To |
mm |
Inches |
Inches |
mm |
mm |
mm |
Ø mm |
Ø mm |
| 6.0 |
9.0 |
10 |
3/8" |
5/8" |
25.0 |
20.5 |
23.5 |
10.0 |
7.0 |
| 6.0 |
12.0 |
12 |
1/2" |
5/8" |
25.0 |
23.0 |
26.0 |
13.5 |
11.0 |
| 12.0 |
16.5 |
16 |
5/8" |
3/4" |
25.0 |
23.0 |
26.0 |
16.5 |
14.0 |
| 16.5 |
18.5 |
19 |
3/4" |
3/4" |
25.0 |
25.5 |
29.5 |
19.0 |
14.0 |
| 18.5 |
20.0 |
22 |
7/8" |
3/4" |
25.0 |
28.0 |
32.0 |
20.0 |
14.0 |
| 20.0 |
23.0 |
25 |
1" |
1" |
25.0 |
31.5 |
36.0 |
23.5 |
19.0 |
| 23.0 |
26.0 |
28 |
1 1/8" |
1 1/8" |
25.0 |
35.5 |
41.0 |
27.0 |
22.5 |
| 26.0 |
30.0 |
32 |
1 1/4" |
1 1/4" |
25.0 |
41.0 |
47.0 |
32.0 |
25.5 |
| 30.0 |
33.0 |
35 |
1 3/8" |
1 1/2" |
25.0 |
44.0 |
50.5 |
35.0 |
27.5 |
| 33.0 |
37.0 |
38 |
1 1/2" |
1 1/2" |
25.0 |
46.0 |
53.0 |
38.0 |
31.0 |
| 37.0 |
41.0 |
45 |
1 3/4" |
2" |
25.0 |
57.0 |
65.5 |
44.5 |
42.0 |
| 41.0 |
46.0 |
50 |
2" |
2" |
25.0 |
61.0 |
70.5 |
51.0 |
42.0 |
| 46.0 |
52.0 |
57 |
2 1/4" |
2 1/4" |
25.0 |
67.0 |
77.0 |
57.0 |
50.0 |
| 52.0 |
54.0 |
63 |
2 1/2" |
2 1/2" |
25.0 |
79.0 |
91.0 |
63.0 |
54.5 |
| 54.0 |
61.0 |
70 |
2 3/4" |
2 3/4" |
25.0 |
82.0 |
95.0 |
69.5 |
62.0 |
| 61.0 |
72.0 |
75 |
3" |
3" |
25.0 |
90.0 |
105.0 |
75.0 |
65.0 |
| 72.0 |
78.0 |
82 |
3 1/4" |
3 1/4" |
25.0 |
95.0 |
109.0 |
82.0 |
74.5 |
| 78.0 |
84.0 |
88 |
3 1/2" |
3 1/2" |
25.0 |
106.0 |
123.0 |
88.0 |
78.0 |
| 84.0 |
94.0 |
100 |
4" |
4" |
25.0 |
116.0 |
135.0 |
98.0 |
87.0 |
