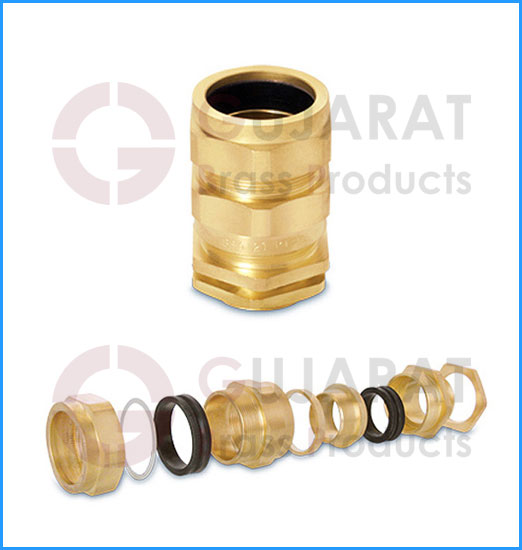

E1W Brass Cable Gland
| Size
| Thread
| Length
| A
| B
| A/F
| A/C
|
| E1W 20S |
M20 |
15.00 |
12.00 |
16.00 |
22.20 |
24.20 |
| E1W 20L |
M20 |
15.00 |
14.00 |
20.50 |
27.00 |
29.50 |
| E1W 20/16 |
M20 |
15.00 |
9.00 |
14.00 |
22.20 |
24.20 |
| E1W 25S |
M25 |
15.00 |
18.50 |
24.50 |
33.50 |
37.50 |
| E1W 25L |
M25 |
15.00 |
20.50 |
27.50 |
36.00 |
40.00 |
| E1W 32S |
M32 |
10.40 |
24.30 |
34.00 |
43.00 |
48.50 |
| E1W 32L |
M32 |
15.00 |
26.27 |
34.20 |
43.50 |
48.50 |
| E1W 40S |
M40 |
15.00 |
29.50 |
41.50 |
52.00 |
58.00 |
| E1W 40L |
M40 |
15.00 |
33.00 |
41.50 |
52.00 |
58.00 |
| E1W 50S |
M50 |
15.00 |
38.50 |
47.00 |
59.00 |
65.50 |
| E1W 50L |
M50 |
15.00 |
44.30 |
53.20 |
64.20 |
71.50 |
| E1W 63S |
M63 |
20.00 |
50.20 |
62.50 |
73.50 |
81.50 |
| E1W 63L |
M63 |
20.00 |
56.20 |
65.50 |
79.50 |
89.00 |
| E1W 75S |
M75 |
20.00 |
62.00 |
74.00 |
87.00 |
97.00 |
| E1W 75L |
M75 |
20.00 |
68.00 |
78.20 |
97.00 |
108.00 |
| E1W 90L |
M90 |
18.50 |
80.00 |
91.00 |
103.50 |
114.50 |

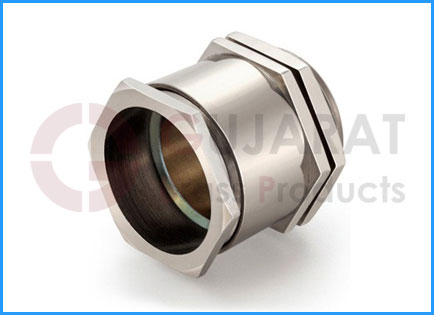

Single Compression

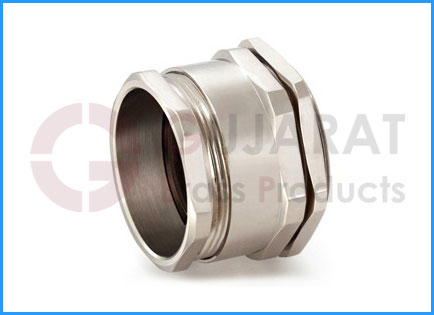

PG Cable Gland

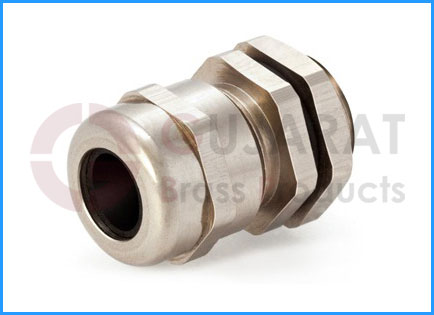

IP68 Cable Gland
